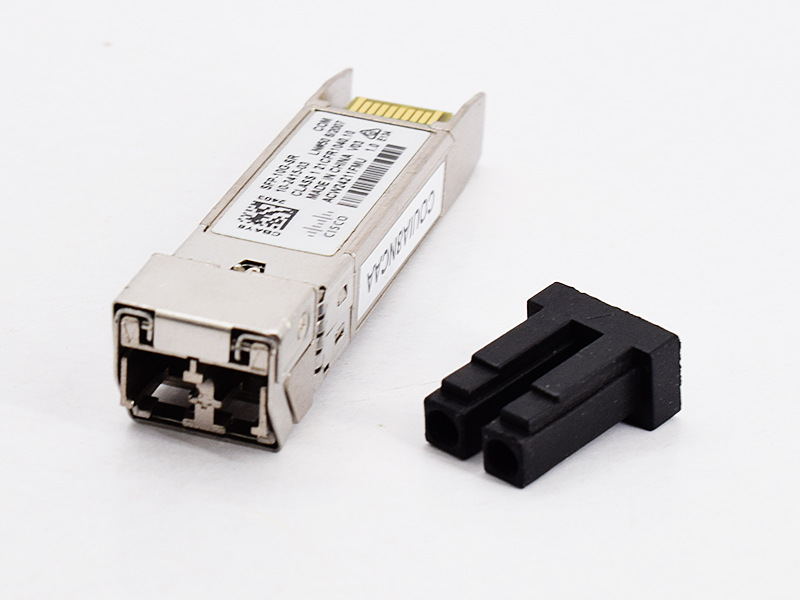

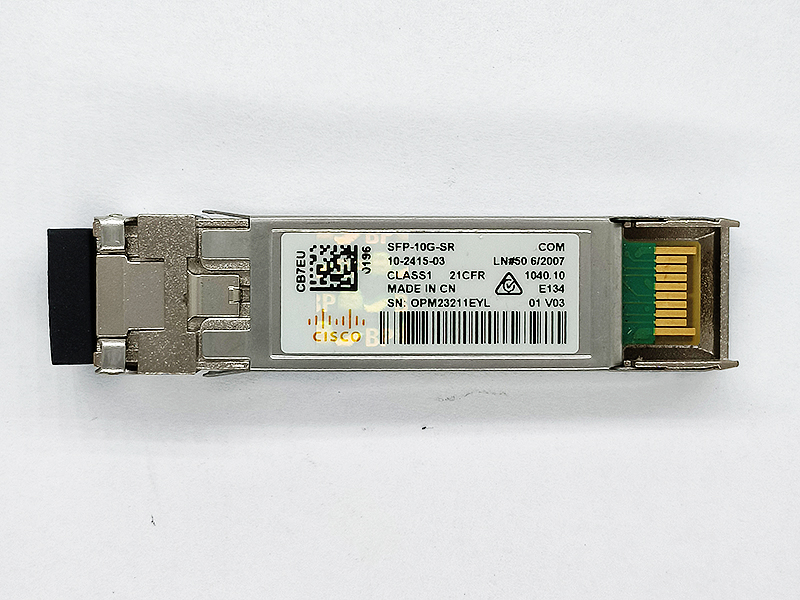

Cisco SFP-10G-SR 10-2415-03 SFP Transceiver

....

Brand: Cisco
MPN: 10-2415-03
Rate: 10 Gbps
Wavelength: 850nm
Mode: Multi-Mode
Connector: Duplex LC
Condition: Open Box
In Stock: Yes

Product Details

Product Tags

A broad range of industry-compliant SFP+ modules for 10 Gigabit Ethernet deployments in diverse networking environments.

The Cisco 10GBASE SFP+ modules give you a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Features and benefits

Cisco SFP+ modules offer the following features and benefits.

Industry’s smallest 10G form factor for greatest density per chassis
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing)
Supports “pay-as-you-populate” model for investment protection and ease of technology migration
Digital optical monitoring capability for strong diagnostic capabilities
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Cisco quality Identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco

Cisco SFP-10G-SR module

The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade Multimode Fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.

Platform support

7600 Series Router
ASR 901
ASR 903
ASR 1000 Series Router
ASR 9000 Series Router
ASR 9000v Series Router
Catalyst 2350 and 2360 Series Switches
Catalyst 2960-S, 2960-X, and 2960-XR Series Switches
Catalyst 3100 Blade Switches
Catalyst 3560, 3560-E, and 3560-X Series Switches
Catalyst 3750, 3750-E, and 3750-X Series Switches
Catalyst 3850 Series Switches
Catalyst 4500 and 4500-X Series Switches
CRS Router
MDS 9000
ME 4500
ME 4900NCS 6000 Series Router
Nexus 2000, 3000, and 4000 Series Switches
Nexus 9000 and 9500 (modular) Series Switches
RF Gateway Series
SCE 8000
Shared Port Adapter (SPA)
Unified Computing System (UCS) Switches

Not all devices listed support every module. For details about which modules run in which devices and other compatibility information, refer to the document “Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix”: https://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/compatibility/matrix/OL_6974.html

Additional platforms may continually be added; please check the compatibility matrix for the latest information and for the Cisco compatible operating system for each platform.

Product specifications

Product Number: SFP-10G-SR
Description: Cisco 10GBASE-SR SFP+ Module for MMF
Connectors: Dual LC/PC connector
Wavelength: 850nm
Cable Type: MMF
Cable Distance:

33m @ OM1
82m @ OM2
300m @ OM3
400m @ OM4
400m @ OM5

Transmit Power (dBm):

Maximum: -1.2
Minimum: -7.3

Receive Power (dBm):

Maximum: -1.0
Minimum: -9.9

Transmit and Receive Wavelength: 840 to 860nm
Bail Latch Color: Beige
Power Consumption: 1W
Operating Temperature Range: Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
