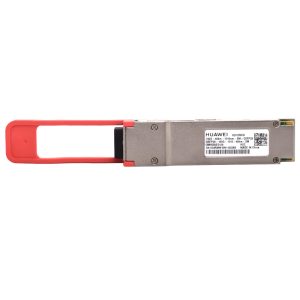

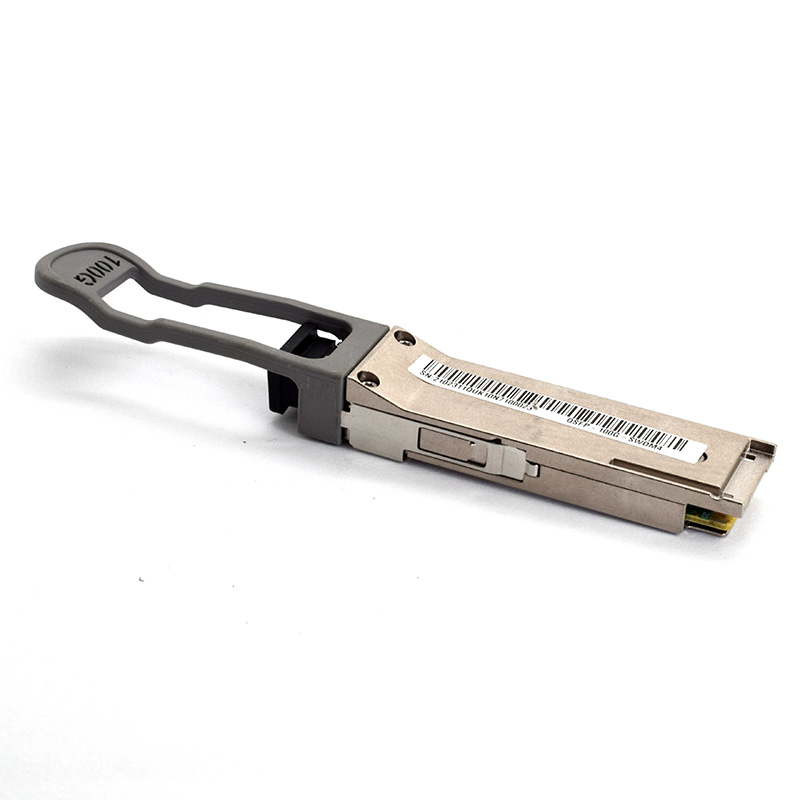

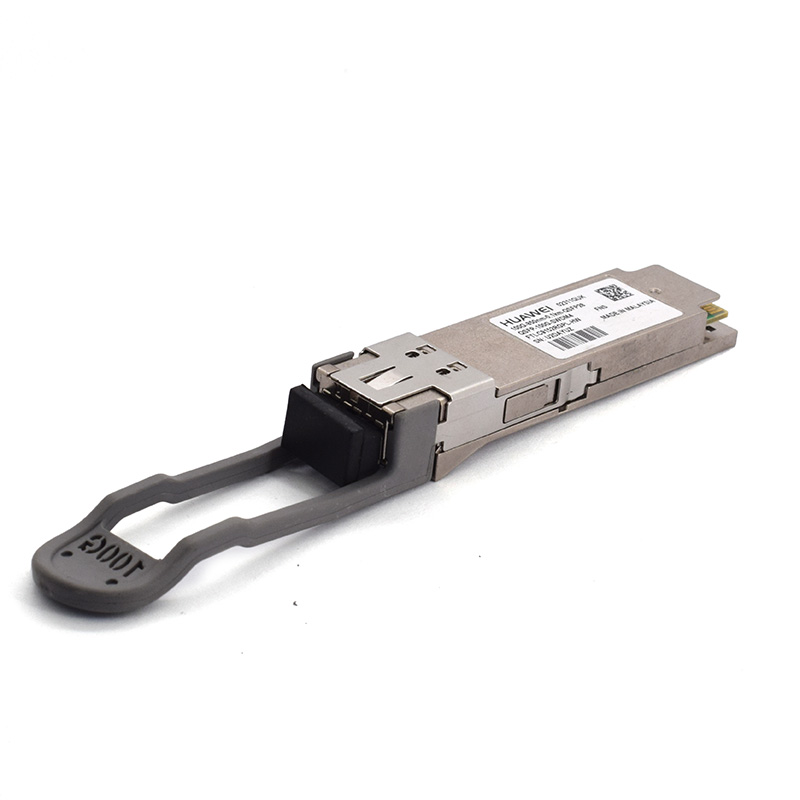

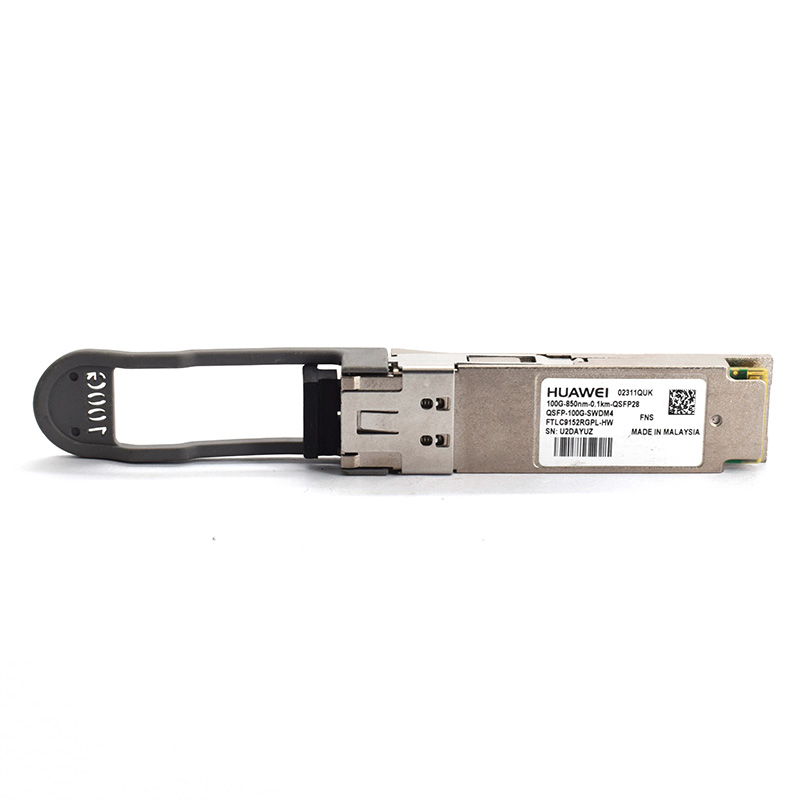

HUAWEI 023111QUK QSFP-100G-SWDM4 FTLC9152RGPL-HW 100G-SWDM4 Transceiver
USD $270.99unit
- Module name: QSFP-100G-SWDM4
- Part Number: 02311QUK
- Model: QSFP-100G-SWDM4
- Form factor: QSFP28
- Application standard/Type: 100G-SWDM4
- Connector type: LC
- Optical fiber type: MMF
- Type of the end face of the fiber ceramic ferrule: PC or UPC
- Working case temperature [°C (°F)]: 0°C to 70°C (32°F to 158°F)
- Transmission rate [bit/s]: 100Gbit/s
- Target transmission distance [km]:
- Multimode fiber (OM3) (with diameter of 50 μm): 75 m
- Multimode fiber (OM4) (with diameter of 50 μm): 100 m
- Modal bandwidth [MHz*km]:
- Multimode fiber (OM3): 2000 MHz*km
- Multimode fiber (OM4): 4700 MHz*km
Transmitter Optical Characteristics
- Center wavelength [nm]: 850 nm
- Maximum Tx optical power (AVG) [dBm]: 3.4 dBm
- Minimum Tx optical power (AVG) [dBm]: -7.5 dBm
- Minimum extinction ratio [dBm]: 2 dBm
Receiver Optical Characteristics
- Rx sensitivity (OMA) [dBm]: -10.5 dBm
- Overload power (AVG) [dBm]: 2.4 dBm
OVERVIEW & Specification
HUAWEI 023111QUK QSFP-100G-SWDM4 FTLC9152RGPL-HW Transceiver (QSFP28 MM, 850nm, 100m Dual LC, 100Gbit/s , 100G-SWDM4, DDM, 0°C to +70°C)
Platform Support:
P/N:
02311QUK
Connector:
Dual LC
Transmit:
-7.5 ~ 3.4 (dBm)
Speed:
100 Gbit/s
DDM:
Support
Receive:
-10.5 (dBm)
Wevelength:
850 nm
Temperature:
0°C to +70°C
Extinction Ratio:
> 2 (dB)
Purchase Information
- Authenticity Guaranteed
All products are original, sourced from reputable suppliers. Please verify part numbers for system compatibility before ordering.
- Condition Disclosure
Used products may have minor cosmetic wear, but are fully functional. Contact us for photos if aesthetics are a concern.
- Warranty & Return Policy
- New Modules: 1-Year Warranty
- Used Modules: 3-Month Warranty
- 14-Day Return Policy: Returns accepted within 14 days of delivery
- Shipping
- Default shipping: Standard small packet service (China Post)
- Import tax duties are not included.
- For faster delivery (DHL, FedEx, etc.), contact us; additional fees apply
