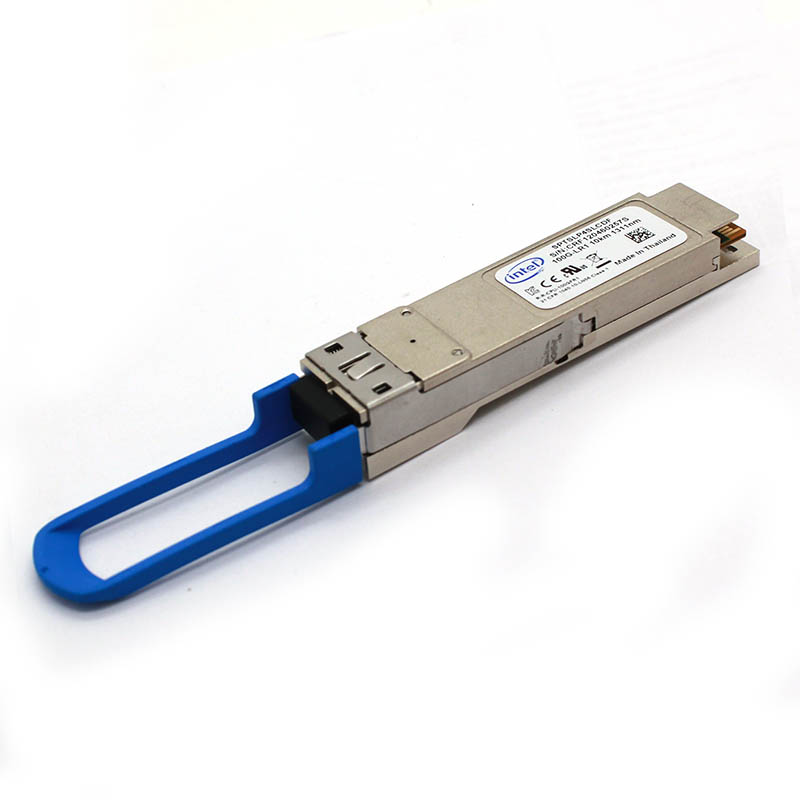

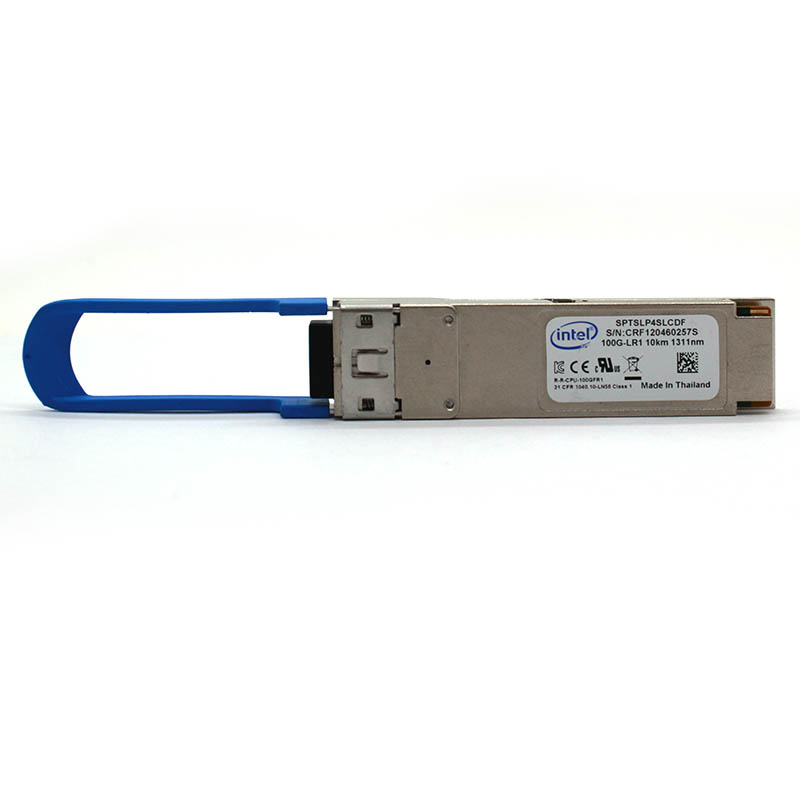

Intel SPTSLP4SLCDF 100G LR QSFP28 Optical Transceiver
USD $299.99unit
The Intel® SPTSLP4SLCDF is a 100G LR QSFP28 Optical Transceiver designed for high-speed data center connections. This small, low-power module supports optical links of up to 10 km over single-mode fiber. It is ideal for large-scale cloud and enterprise data centers, as well as for Ethernet switches, servers, and routers. The module is compliant with IEEE 100GBASE-LR standards and supports reaches of up to 10 km.
Intel SPTSLP4SLCDF 100G LR QSFP28 Optical Transceiver Used
OVERVIEW & Specification
The Intel Silicon Photonics 100G LR (SPTSLP4SLCDF) QSFP28 Optical Transceiver is a high-speed, compact, and low-power solution for optical interconnects in data communications applications. This module is specifically designed for use in large-scale cloud and enterprise data centers, as well as for Ethernet switch, server, router, and client-side telecom optical interfaces.
- Reach: The SPTSLP4SLCDF model supports optical links of up to 10 km over single-mode fiber.
- Compliance: This transceiver is compliant with the IEEE 100GBASE-LR optical interface standard and 100G Lambda MSA specifications.
- Form Factor: It comes in a compact QSFP28 form factor, which allows for high faceplate density in networking equipment.
- Power Consumption: The module has a maximum power dissipation of 4.5W.
- Compatibility: It is compatible with standard single-mode fiber (SMF) connectors and cable infrastructures. The electrical interface is compliant with the IEEE 802.3bm CAUI-4 4x25G standard.
- Diagnostics: Full module diagnostics and control are available through I2C, which is compliant with SFF-8636.
- Interoperability: It can interoperate with 4x100G LR1 (100G LR1) optical modules in 4x100GbE breakout applications.
P/N:
SPTSLP4SLCDF
Connector:
Duplex LC
Form:
QSFP
Speed:
100 Gb
DOM:
Support
Media:
SMF
Wevelength:
1310 nm
Temperature:
0 ~ 70°C
Reach:
10 KM
Purchase Information
- Authenticity Guaranteed
All products are original, sourced from reputable suppliers. Please verify part numbers for system compatibility before ordering.
- Condition Disclosure
Used products may have minor cosmetic wear, but are fully functional. Contact us for photos if aesthetics are a concern.
- Warranty & Return Policy
- New Modules: 1-Year Warranty
- Used Modules: 3-Month Warranty
- 14-Day Return Policy: Returns accepted within 14 days of delivery
- Shipping
- Default shipping: Standard small packet service (China Post)
- Import tax duties are not included.
- For faster delivery (DHL, FedEx, etc.), contact us; additional fees apply
