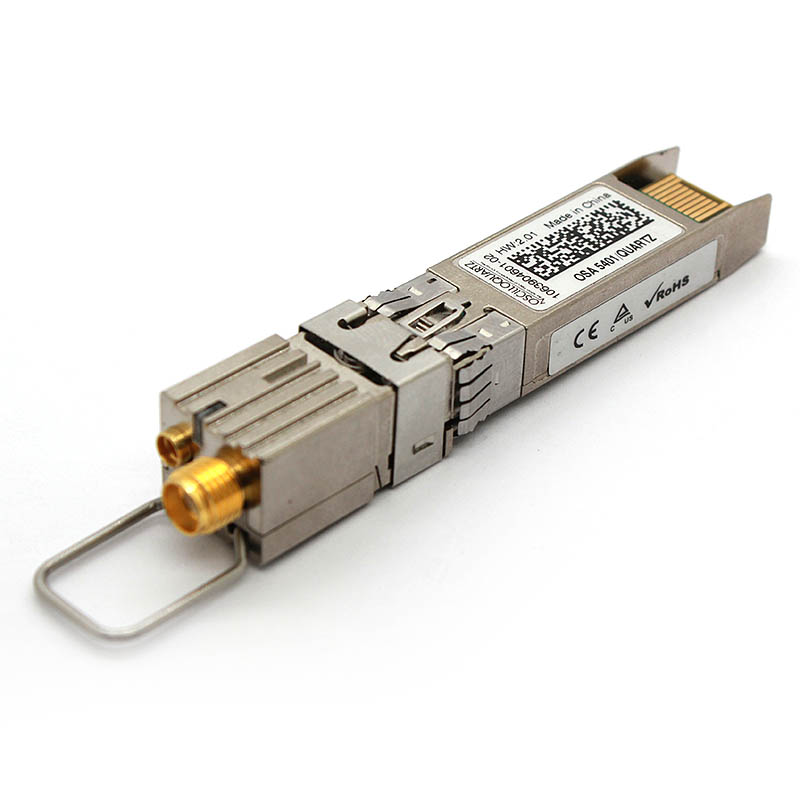

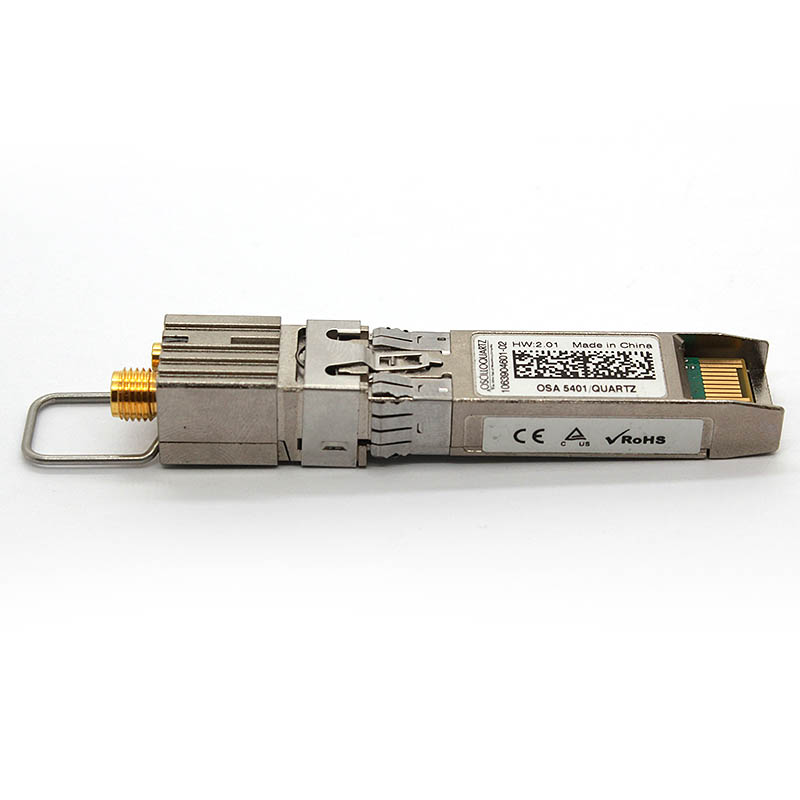

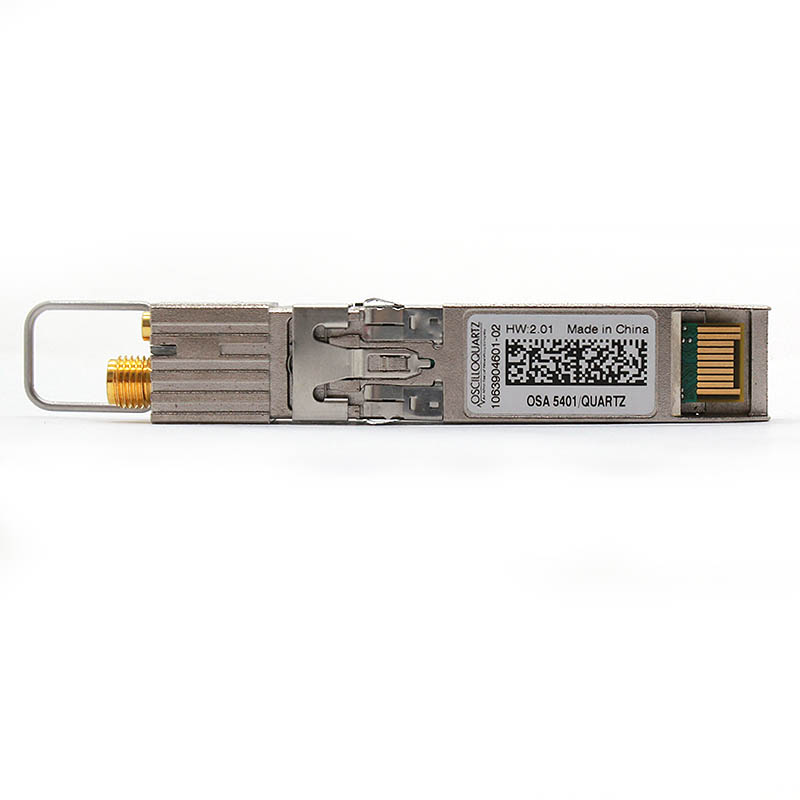

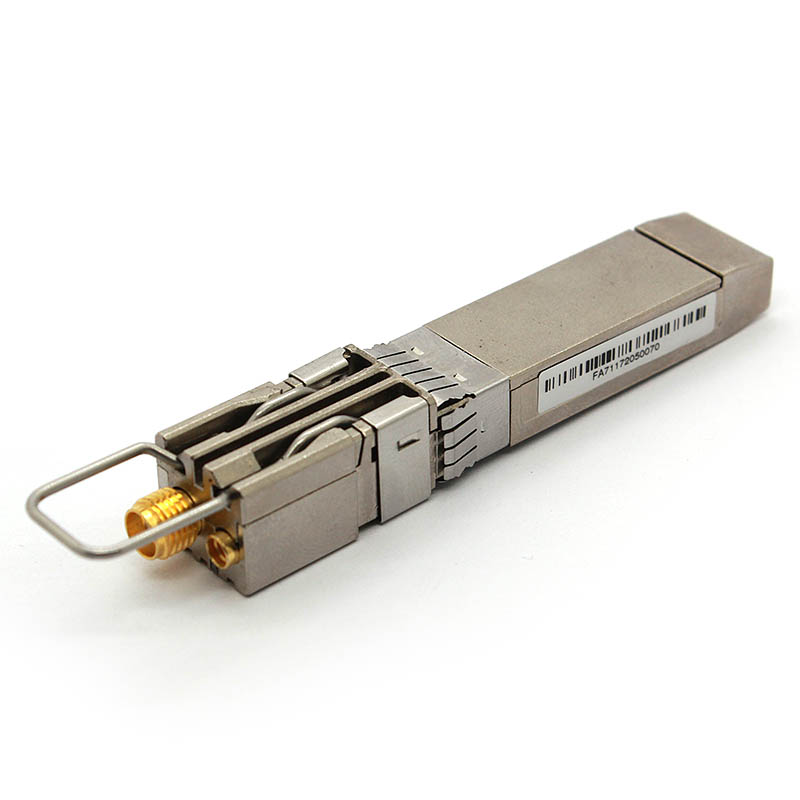

Oscilloquartz OSA 5401 SyncPlug SFP-Based PTP Grandmaster, NTP Server, Boundary/slave Clock, GNSS Receiver
USD $699.99unit
- Smallest PTP grandmaster and NTP server with GNSS built-in
- Supports IEEE 1588v2 PTP, Sync-E, and NTP
- Advanced jamming and spoofing detection
- Extended temperature range (-40 to +80°C)
- Less than 1.5W power consumption
- Compliant with SFP MSA – plug-and-play with no additional space or power needed
OVERVIEW & Specification
Ultra-Compact SFP-Based GNSS Time Server & PTP Grandmaster
The OSA 5401 SyncPlug™ is a powerful and versatile time server in a small-form factor pluggable (SFP) design, featuring a built-in GNSS receiver. It offers the smallest footprint and most compact design on the market for accurate phase and frequency synchronization using PTP, Sync-E, and NTP at the network edge with zero-adding footprint. Supporting various applications:
Telecom
5G RAN synchronization, small cells, and macro base stations
Smart Grid
Power utility synchronization compliant with IEC 61850
Data Centers
Time-as-a-Service for cloud infrastructure
Broadcast
Media networks with SMPTE 2059-2 synchronization
Finance
High-frequency trading and transaction timestamping
Transportation
Traffic control systems and signaling networks
Form Factor:
Small form-factor pluggable SFP with GNSS receiver
Integrated Functions:
GM, BC, SC, NTP server
Power Consumption:
Power Consumption
Operating Temperature:
-40 to +80°C (-104 to 176°F)
Timing Accuracy:
+/-100nsec from UTC (G.8272/G.8273.1 compliant PRTC
PTP Profiles (GM):
IEEE 1588 2008 L3/L2, ITU-T 8265.1/8275.1/8275.2, Power, Broadcast, PTP over L2 and IPv4/IPv6 (simultaneously)
GNSS Receiver:
72-channel multi-GNSS (GPS, GLONASS, BeiDou, Galileo E1, SBAS) with advanced jamming and spoofing detection
NTP Server:
Stratum 1 when locked to GNSS, NTP v1, v2, v3, v4, SNTP over IPv4/IPv6, up to 500,000 transactions / second
Sync-E:
Compliant to ITU-T G.8261/G.8262/G.8264, G.811 compliant PRC when locked to GNSS
Purchase Information
- Authenticity Guaranteed
All products are original, sourced from reputable suppliers. Please verify part numbers for system compatibility before ordering.
- Condition Disclosure
Used products may have minor cosmetic wear, but are fully functional. Contact us for photos if aesthetics are a concern.
- Warranty & Return Policy
- New Modules: 1-Year Warranty
- Used Modules: 3-Month Warranty
- 14-Day Return Policy: Returns accepted within 14 days of delivery
- Shipping
- Default shipping: Standard small packet service (China Post)
- Import tax duties are not included.
- For faster delivery (DHL, FedEx, etc.), contact us; additional fees apply
