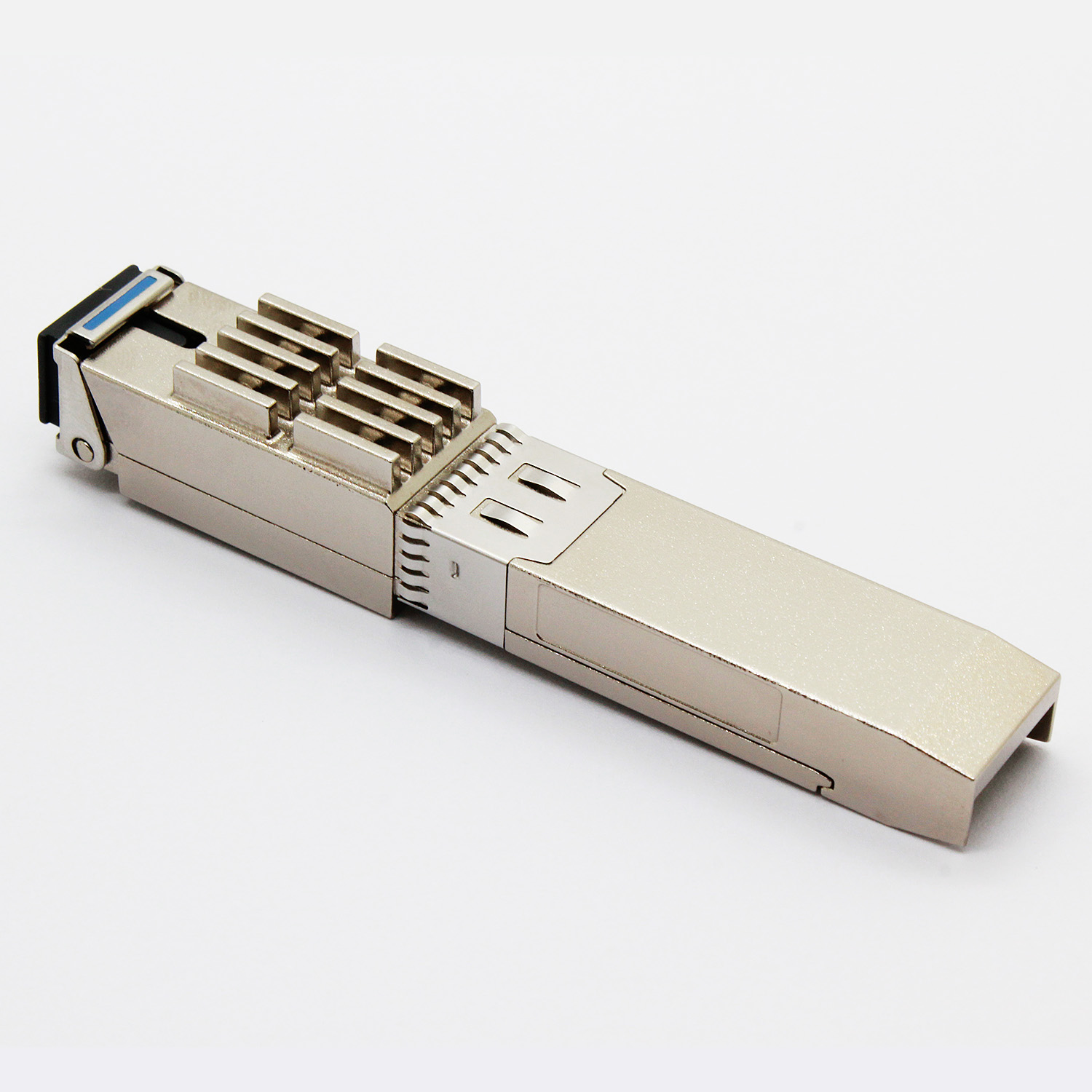

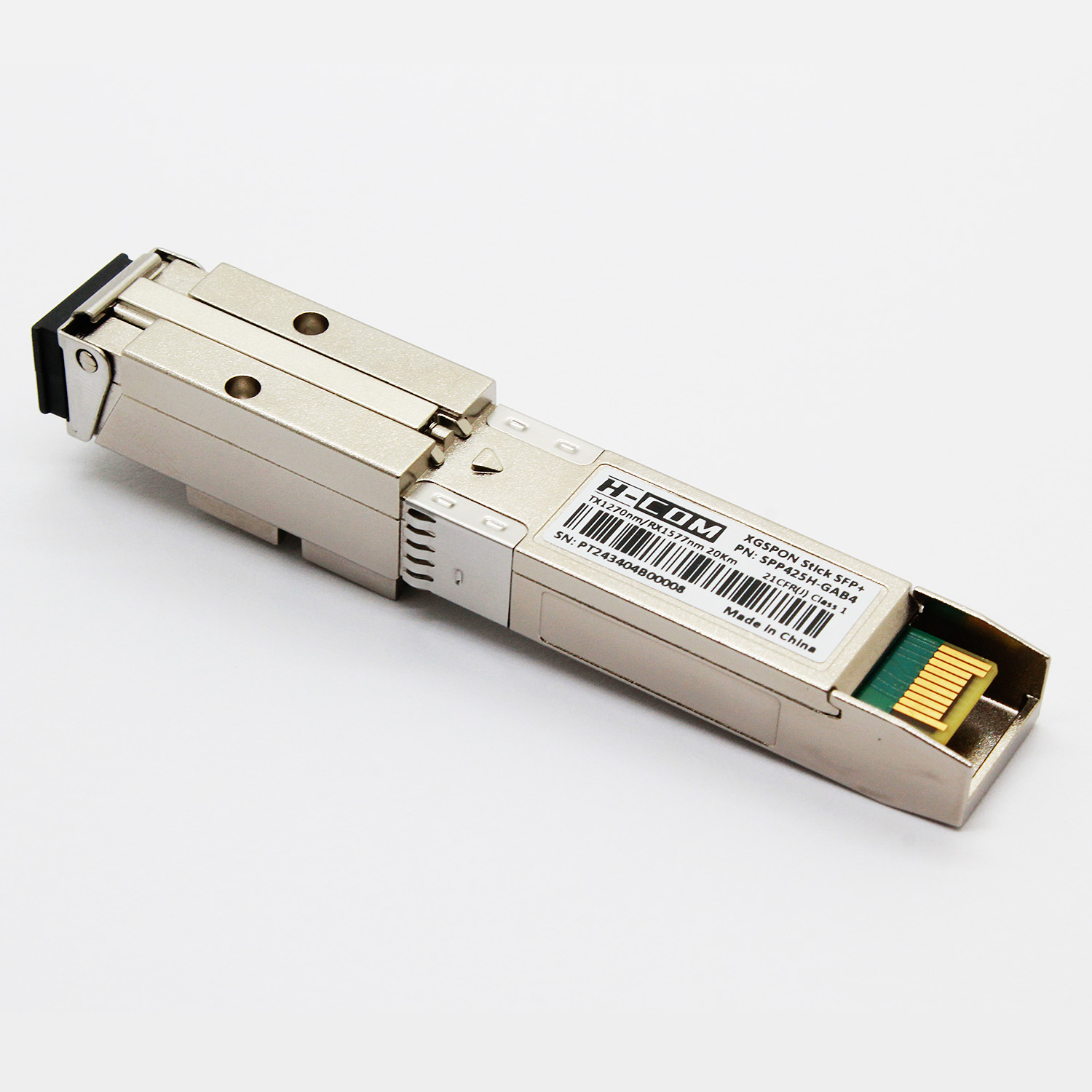

XGSPON ONU Stick SFP+ with 8311 Firmware (Come with Fan)
USD $139.99unit

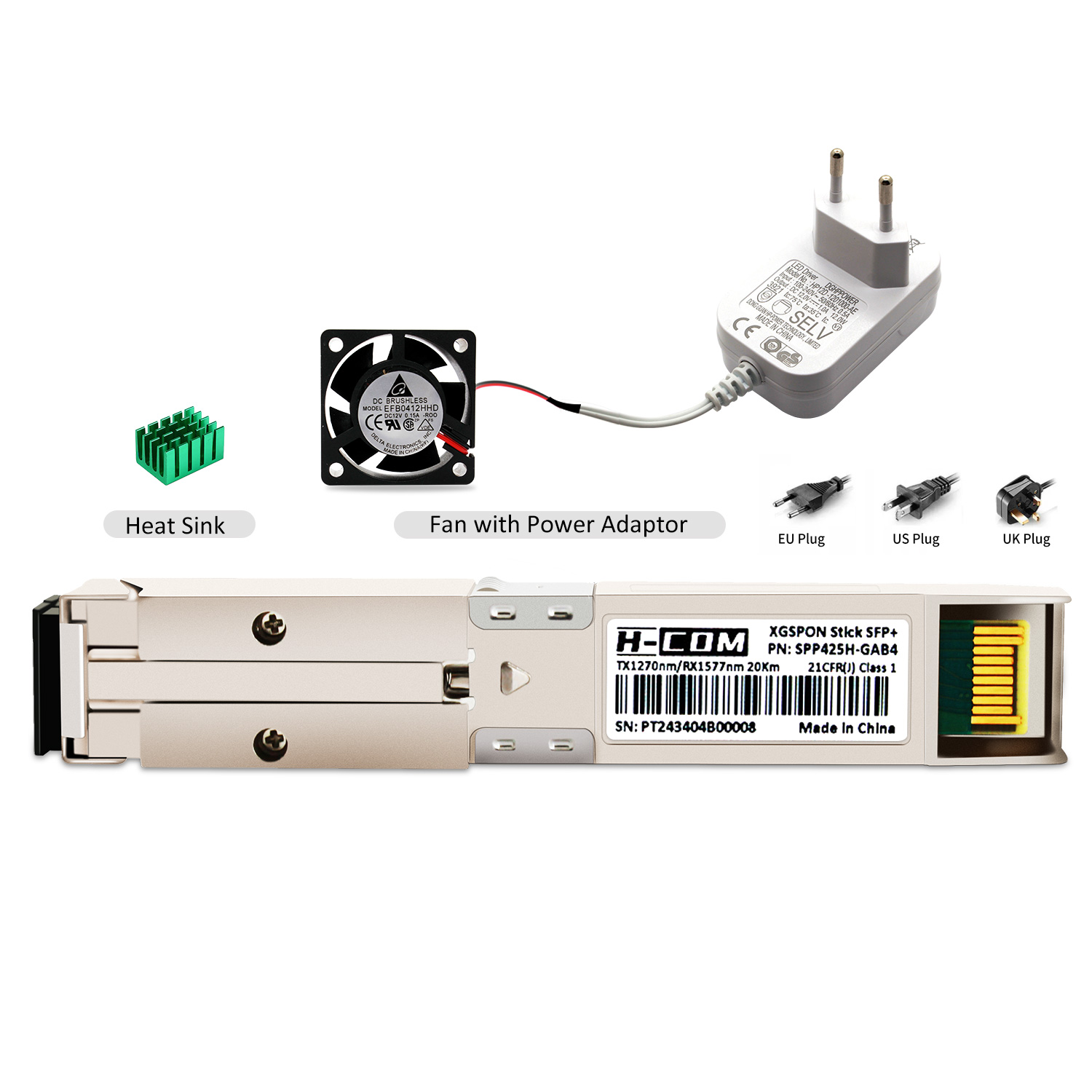

- Free heatsink and fan included: Effectively lowers operating temperature and extends product lifespan
- Integrated Maxlinear PRX126 Chip: Supports XGS-PON/XG-PON networks; GPON incompatible (wavelength mismatch)
- Pre-installed 8311 (v2.8.0) Community Firmware: Streamlined device configuration with one-click web setup!
- Advanced Features: Data encryption, VLAN configuration, fault alerts, dynamic bandwidth allocation, and multicast passthrough.
- Standards Compliance: ITU-T G.9807, SFP+ MSA, OMCI protocol stack
Overview & Benefits
XGSPON STICK Optical Module (SFP+ PON ONU): This carrier-grade, ITU-T compliant module is your solution for next-gen FTTx deployments. Designed to replace SFU modems, it delivers Gigabit/10 Gigabit optical-to-electrical conversion for PON networks.Hot-pluggable into any 10 Gigabit SFP+ enabled switch, it seamlessly transforms the switch into an ONT for direct XGSPON network integration. Enjoy simplified OLT registration and effortless P2P to PON network migration across FTTB, FTTH, and FTTO applications.
High-Speed Performance
Delivers 9.983Gbps symmetrical speeds (1270nm TX/1577nm RX) over 20km via single-mode fiber. Powered by the advanced MaxLinear PRX126 chipset.
Plug-and-Play Solution
Pre-installed with the 8311 (V2.8.0) Community Firmware for easy setup and SFU modem replacement. This hot-pluggable module seamlessly integrates into any SFP+-enabled switch.
Advanced Monitoring
Built-in DDM for real-time temperature and power monitoring. Advanced web management enables effortless configuration, diagnostics, and scalability.
Carrier-Grade Reliability
Achieve carrier-grade reliability compliant with ITU-T standards. Ideal for carriers and enterprises seeking cost-efficient, next-gen FTTx deployments.
Technical Specifications
FORM:
SFP with SC/APC receptacle
DATA LINK:
TX9.953 Gb/s/ RX9.953 Gb/swith MAC function
SOC:
PRX126 @ 400 MHz - MIPS interAptiv 34Kc
DATA LINK:
-40~85°C (-40~185°F)
NAND:
128 MB (1 Gbit)
TX POWER:
4~9 dBm
RAM:
1 GB
RX SEN:
<-29 dBm
BOSA:
SC/APC - Tx: 1270 nm / Rx: 1577 nm
RX OVERLOAD:
-6 dBm
EEPROM:
Support
POWER:
< 2.5 Watt
UART:
UART Rx: pin 7 / Tx: pin 2 - 115200-8-1-N
COMPLIES:
ITU-TG.987.2; G.9807.1, G.9807.2; G.988 OMCI L2
IP:
192.168.11.1
APPLICATIONS:
Gateway/Switch/Router,VDSL MDU, G.fast DPU
Compatibility
- OLTs
- ZTE (e.g C600)
- HUAWEI (e.g MA5800)
- NOKIA (e.g OLT7360)
- Other Leading Brands
- P.s. Not support FiberHome
- Switches / Routers
- HUAWEI
- CISCO
- HPE Aruba
- Microtik
- TP-LINK
- Other Main Brands
- Network Cards
- Intel X520 series
- Intel X710 series
- Intel 82599ES 10G SFP+ NIC
- Mellanox MCX512A-ACAT
User Guide
Warranty & Support
We want you to be confident in your purchase. Here's what you can expect regarding the quality and support for our products.
- Quality Assurance
Every product undergoes thorough testing before it ships to ensure it meets our high functionality standards. We guarantee your product will be fully functional upon arrival.
- Warranty Coverage
We offer a 1-year warranty Support, starting from your date of arrive. This warranty covers defects in materials and workmanship.
- Customer Responsibilities & Support
To ensure optimal performance, please make sure your ONU stick is configured correctly before use. Incorrect configuration can lead to functionality issues. We strongly recommend:
- Carefully reviewing the product setup instructions.
- Consulting professional resources if you need assistance with configuration.
If you encounter compatibility issues with your existing equipment, we’re here to help! Please refer to the relevant documentation, or feel free to reach out to our technical support team for guidance.
