NOTICE:

1. We offer two versions:SSH Version(No Web UI) & 8311 Firmware Version (Supports Web Management), please choose the version that best suits your needs.

2. For the 8311 Firmware Version, we pre-flash the device with firmware version 2.7.1 by default, and each unit is thoroughly tested before shipment to ensure proper functionality.

   • Flashing Advisory: We strongly recommend that buyers avoid flashing the device unless absolutely necessary. Incorrect firmware flashing can result in functionality issues that may not be covered under our warranty.

   • Return Shipping Costs: Please note that we do not cover return shipping costs for issues caused by incorrect flashing or user-induced problems.

3. For those intending to flash the device, we highly advise creating a backup of the u-Boot before proceeding with any firmware updates to minimize potential risks.

APPLICATIONS:

• The XGS-PON ONU SFP+ Stick, also referred to as the "SFP+ encapsulated PON ONU module" in China Telecom's enterprise standards, is primarily used to replace SFU (Single Family Unit) optical modems. It facilitates gigabit (or 10-gigabit) single-port optical-to-electrical conversion in PON (Passive Optical Network) networks.

• This module fully meets the requirements for telecom-grade FTTB (Fiber to the Building), FTTH (Fiber to the Home), and FTTO (Fiber to the Office) equipment. It can be hot-plugged into a 10G SFP+ slot on a Layer 2 Ethernet switch, functioning as an ONU. This allows the entire device to directly connect to the XGS-PON optical network. The OLT (Optical Line Terminal) at the central office can register the XGS-PON ONU SFP+ Stick just like a regular ONU, enabling the transition from a P2P (Point-to-Point) network to a PON network.

•

OVER VIEW:

1. Product Name:  XGS-PON ONU SFP+ Stick, commonly known as "Optical Network Unit (ONU) Stick”

2. Chipset Solution:  Maxlinear PRX126

   Part Number	Description

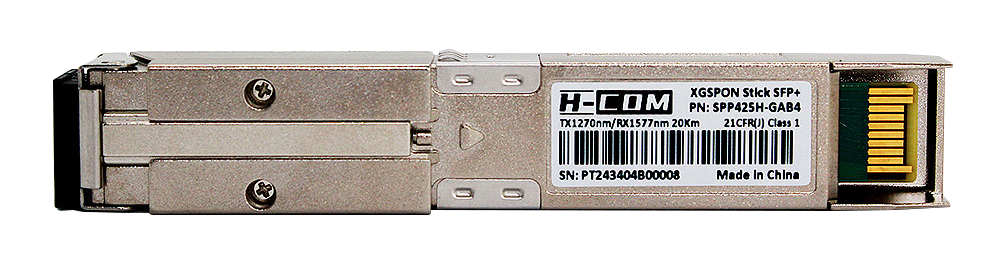

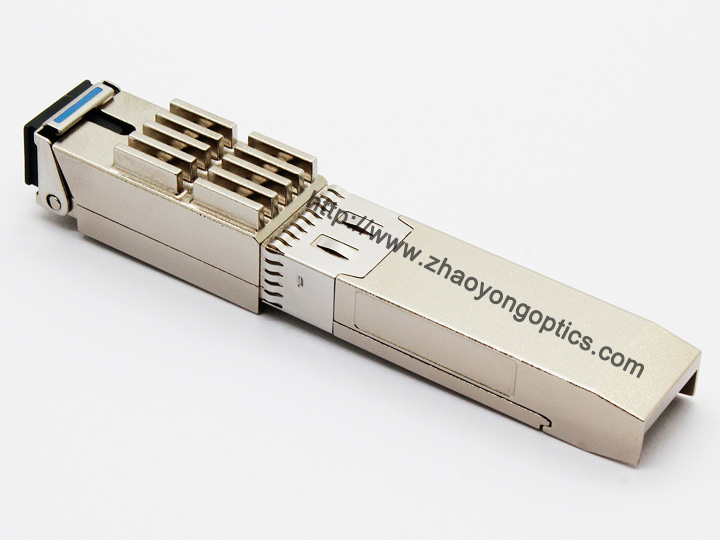

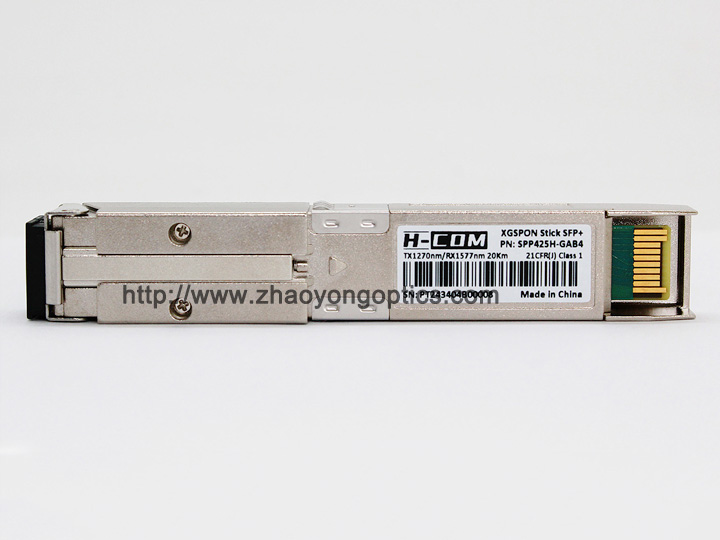

   SPP425H-GAB4	SFP+ ONU, 9.953G TX/9.953G RX, Tx1270/Rx1577nm 20km, SC/APC, XGSPON ONU STICK

3. Key Features:

   • 3.3V power supply

   • Maximum transmission distance of 20 km

   • Data encryption support

   • Compatible with SFP MSA (Multi-Source Agreement)

   • VLAN configuration support

   • RoHS compliant

   • Software online upgrade support

   • Fault alarm support

   • Dynamic Bandwidth Allocation (DBA) support

   • Multicast pass-through support

   • SC/APC or SC/UPC interface options

COMPATIBLE:

• OLTs:  ZTE | Huawei | Nokia | Other Main Brands

• Switches:  Huawei | H3C | TP-Link | Cisco | MikroTik | Other Leading Brands

• Note: The list of compatible devices is continuously being updated.

USER GUIDE:

1. SSH version:
   • Installation:

     • Insert the XGS-PON ONU SFP+ Stick into the optical port of your switch or router.

     • Verify connectivity by pinging the module. The IP address of the module is 192.168.1.1.

   • SSH Login (Telnet is not supported) :

     • IP Address: 192.168.1.1

     • Username: root

     • Password: (No password required)

   • Main Operation Commands:

     • View VLAN Configuration Issued by OLT:
       Bash
       tc filter show dev eth0_0 ingress

     • View Counters (MAC1 for PON port, MAC4 for LAN port):
       Bash
       switch_cli xgmac "" get rmon
       switch_cli xgmac "" clear_rmon
       pon eth_rx_counters_get 1024
       pon eth_tx_counters_get 1024

     • Capture OMCI Data Packets:
       Bash
       tcpdump -i gem-omci -w <filename>

     • To view captured OMCI data packets:
       Bash
       tcpdump -r <filename>
       To export data packets:
       Bash
       tftp 192.168.1.2 -l OMCI_data -p

     • Modify LOID/LOID_PW Registration:
       Bash
       uci set omci.default.loid='your_loid_name'
       uci set omci.default.lpwd='your_loid_password'
       uci commit sync

     • Example:
       Bash
       uci set omci.default.loid=sadasfgqwqwd uci set omci.default.lpwd=hgdgfshdfsdas uci commit sync

2. 8311 Version (e.g.: Mikrotik CRS305 switch):

   • Access the ONU: IP Address: 192.168.11.1, Web Username: admin, SSH Username: root (No password for web/SSH access)

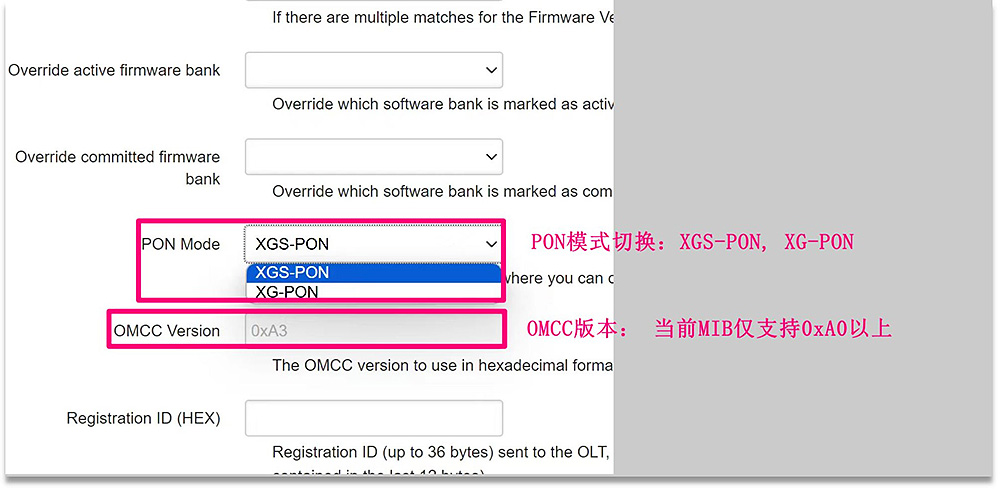

   • PON Mode: The current firmware supports switching between XGS-PON and XG-PON modes (GPON and EPON support pending firmware update)

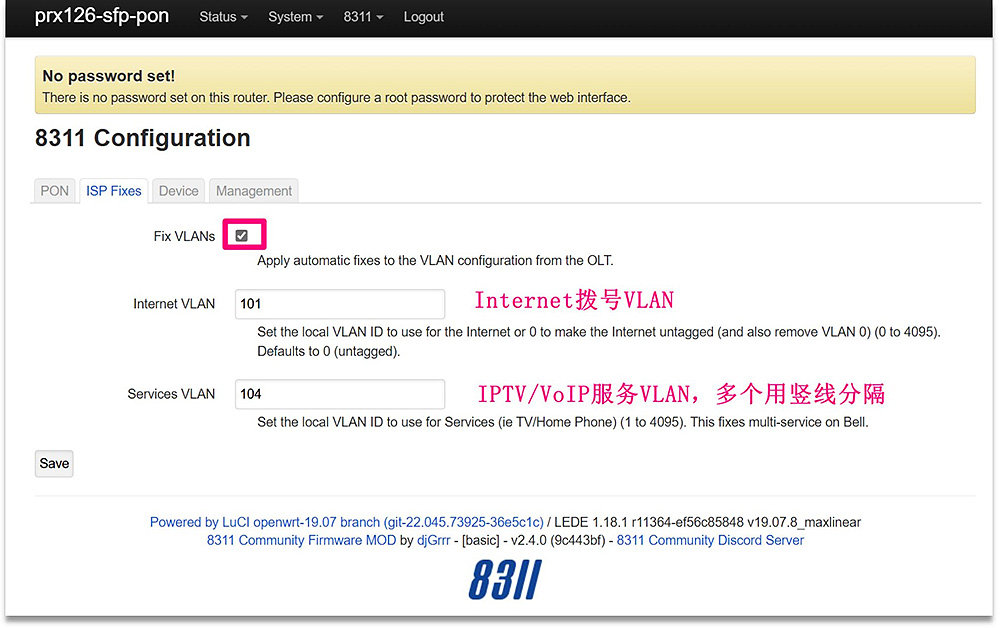

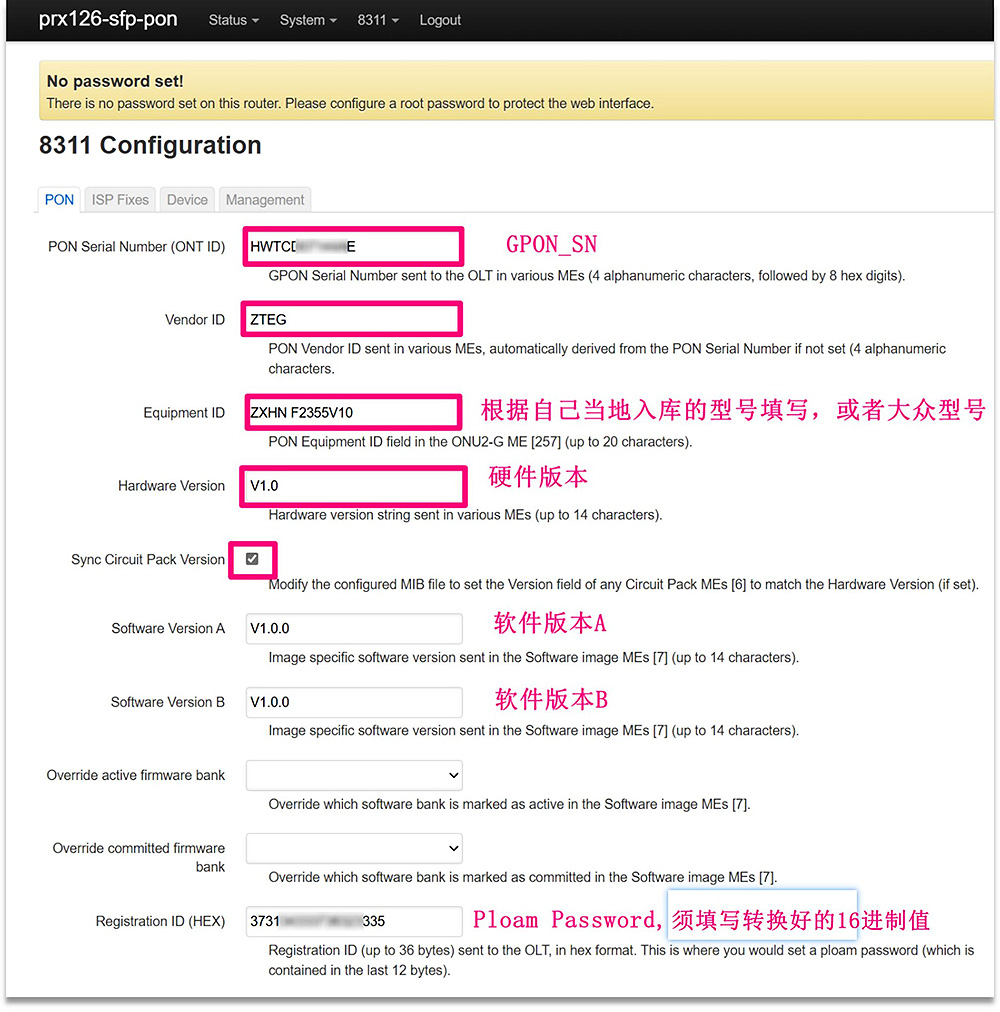

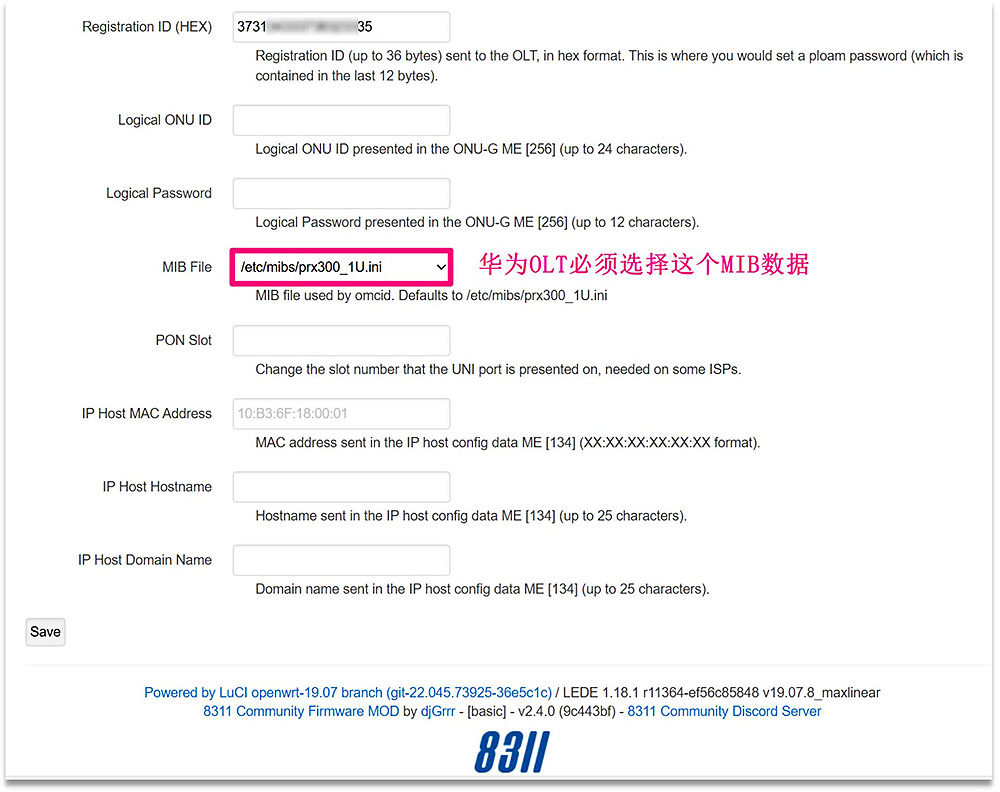

   • OMCI Masking: Includes Vendor ID, Equipment ID, Hardware Version, Software Versions A & B, OMCC Version, MIB File (For Huawei OLT, select /etc/mibs/prx300_1U.ini). *If you are unsure about the specific configuration, it is strongly recommended not to modify these settings as it may cause the device to become inaccessible.*If you need to make changes, we strongly suggest first flashing the 8311-community version U-boot. If the device becomes a soft brick, it can be recovered using the U-boot recovery process.

   • Authentication Configuration: LOID, SN, SN + Password, SN + Password + MAC

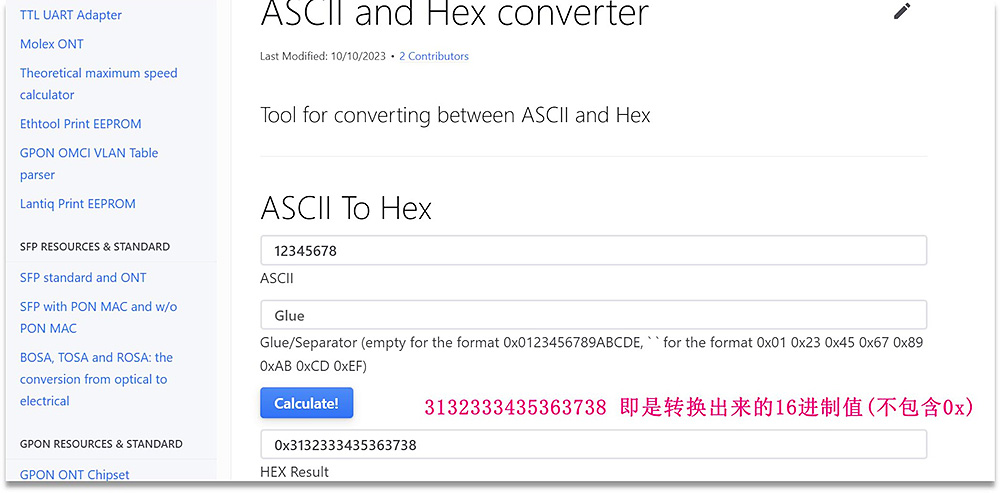

   • The value entered in the Password (Ploam Password/Registration ID) field must be in hexadecimal format, which can be converted using an online ASCII to Hex converter, e.g., ASCII and Hex converter, contact us if you need this converter.

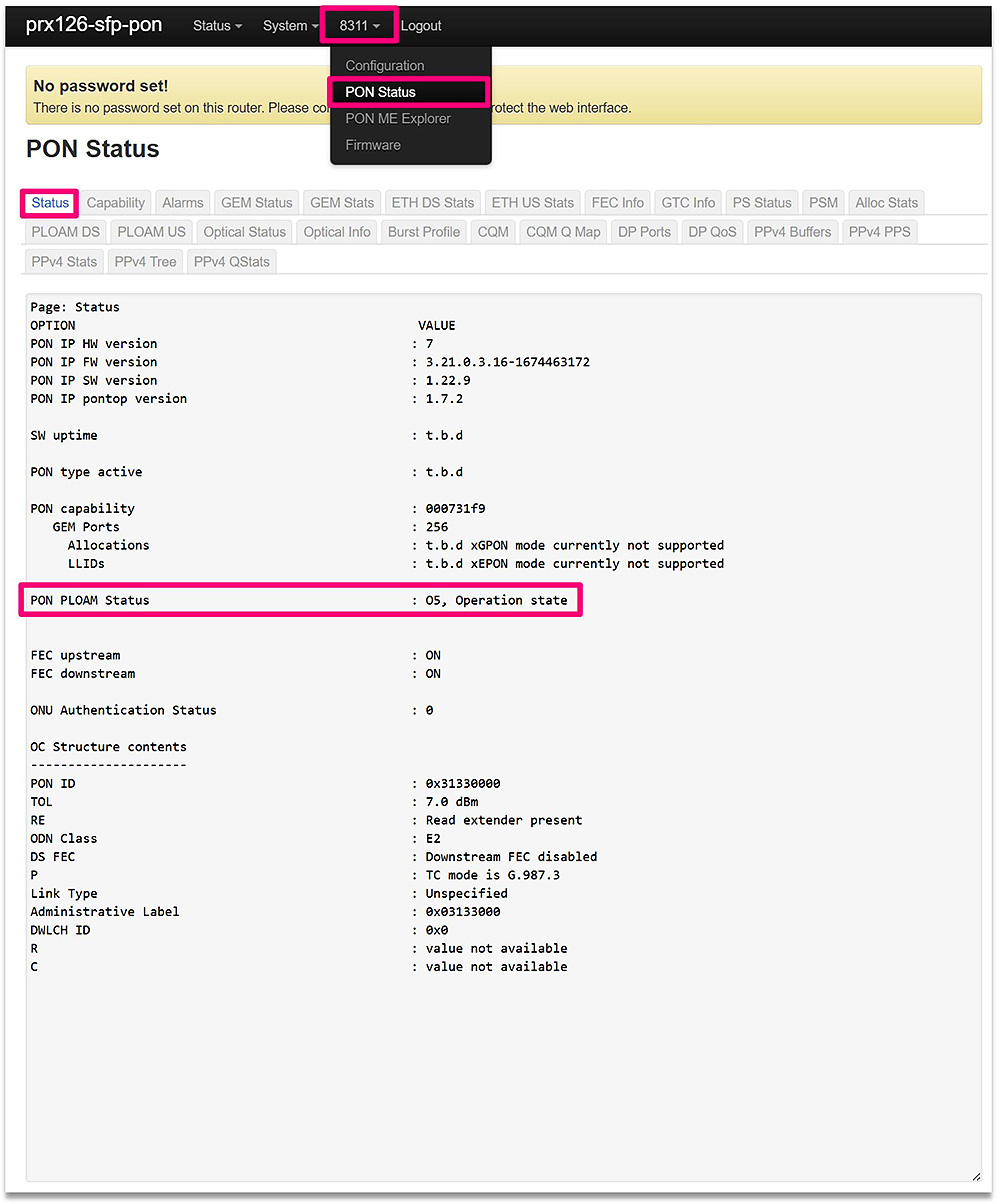

   • After completing the settings, reboot the ONU and check the registration / authentication status.

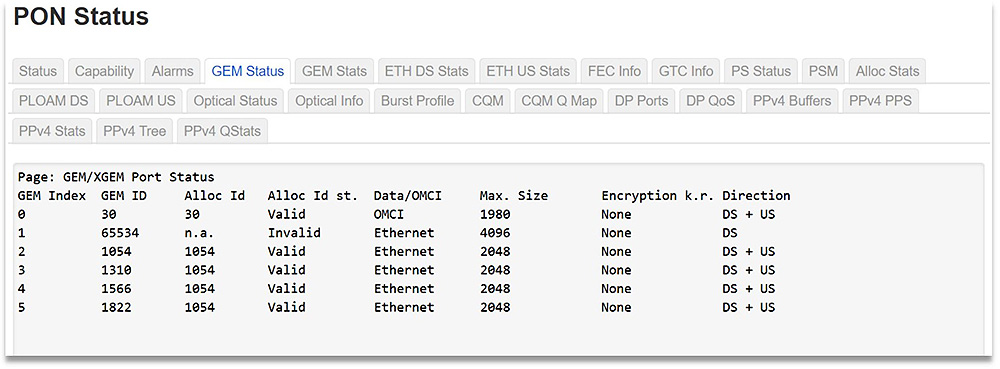

     GEM ports have been allocated, with the Alloc ID being the ONU ID assigned by the OLT.

ABOUT WARRANTY:

Thank you for purchasing our brand new 10G ONU sticks. We are dedicated to providing high-quality products and exceptional after-sales support. Please review our after-sales policy:

• Pre-Shipment Testing: All products are thoroughly tested before shipment to ensure they meet functionality standards. We guarantee that the product will function properly upon arrival.

• Warranty:

  • SSH Version Support: 2-years warranty.

  • 8311 Firmware Version Support: 1-year warranty.

• Customer Responsibility:

  • Please ensure that the ONU stick is configured correctly before use, as improper configuration can cause functional issues. We advise customers to check the product setup carefully and consult professional resources if needed.

  • If there are compatibility issues with your equipment, we are happy to assist, but we recommend referring to relevant documentation or seeking technical support from professionals.
